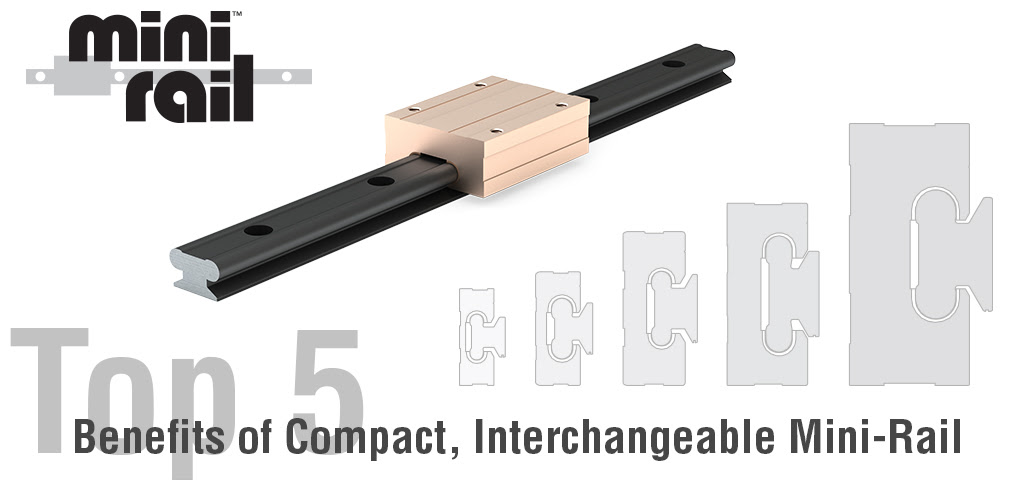

Based on Simplicity technology, the Mini-Rail plain rail system’s effective two-piece design allows for fast installation and provides outstanding performance in demanding linear motion applications from semi-conductor wafer handling to packaging equipment. With no rolling elements, Mini-Rail will not catastrophically fail. Mini-Rail is a fully interchangeable and economical solution to industry standard linear guides.
Features of the Mini-Rail system include:
- Static load capacity up to 1350 lbs
- Available in 5 sizes from 7 to 20 mm base width
- Rail lengths up to 3600 mm
- Self-lubricating Frelon Gold
- No rolling elements, no catastrophic failure
- Smooth, quiet and repeatable
- Withstands vibration and shock
- Two design configurations: Precision and Compensated
- Ceramic-coated aluminum rail
- Anodized aluminum carriage
- Long-life and corrosion resistant
- Compact design
- Lead screw and stepper motor options available
- Interchangeable to comparable ball style systems
