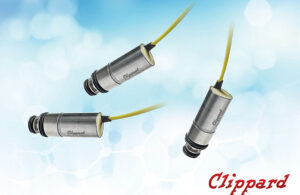

Clippard releases new series of micro proportional 8 mm electronic valves

NEWS RELEASE: Clippard releases new series of micro proportional 8 mm electronic valves

These 8 mm proportional direct-acting valves provide precise, linear control for accurate dosing and flow regulation in critical applications. With low power consumption, they offer excellent energy efficiency while maintaining quiet operation and minimal vibration. Their versatile design makes them suitable for a wide range of medical, diagnostic, and industrial applications.

• Ideal for compact assemblies
• Eliminates downstream pulsations
• Smooth proportional delivery
• Low current power / low to no noise
• Exceptional variability of flow vs. command current
• Tiny package with a robust design
• Highly customizable performance

Standard products offered will fit the needs of most applications, however this series can be fully customized according to the user’s unique requirements. Consult Clippard with your specific application.

• Connection: 3.15” (80 mm) wire leads
• Current Range: 0 to 70 mA
• Cycle Life: 100 million
• Filtration: 10 micron
• Function: 2-way normally-closed proportional
• Hysteresis: < 10% of full current
• Leak Rate: 1.0 sccm
• Material, Wetted: Stainless steel, FKM/FFKM Max.
• Flow: 0.012” (0.3 mm) Orifice: 7.3 ± 0.7 l/min @ 145 psig (10 bar) 0.020” (0.5 mm) Orifice: 7.0 ± 1.0 l/min @ 87 psig (6 bar)
• Medium: Air, inert gases
• Mount: Cartridge
• Nominal Coil Resistance: 308 Ω @ 68˚F (20˚C)
• Number of Ports: 2
• Operating Pressure: 0.012” (0.3 mm) Orifice: 0 to 145 psig (10 bar); 0.020” (0.5 mm) Orifice: 0 to 87 psig (6 bar)
• Operating Temp. Range: 41 to 122˚F (5 to 50˚C)
• Orifice 0.012” (0.3 mm), 0.020” (0.5 mm)
• Wattage: 1.5 watts @ 68˚F (20˚C); 2.2 watts max.

For more details. go to: clippard.com/link/pv8
