Comparing spur versus planetary gearheads

December 8, 2016 By Danielle Kirsh

Maxon Precision Motors Inc.

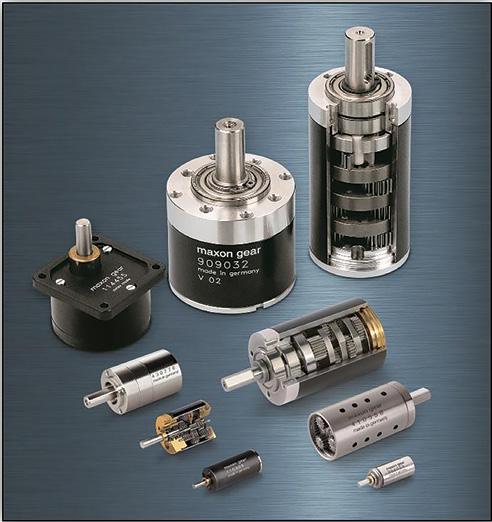

The two most common and readily available gearhead designs are the spur and planetary versions. Each has benefits and drawbacks depending on the particular application.

Spur gearheads are designed in such a way that two gears (a single stage) work together to increase the torque potential of the driving motor. Each gear in the train of a spur gearhead bears the entire torque load. Therefore, these gearheads are used where lower torques are specified. Backlash is also a common concern when using a gearhead. Backlash depends on the shape and accuracy of the gear teeth and the accuracy of the gear wheel mounting arrangement. The same goes for efficiency. The interplay between these two—backlash and efficiency—is that an increase in mechanical play between gears is good for efficiency and bad for backlash. In general, spur gearheads are the simpler and least expensive of the two units.

Planetary gearheads are more complex in design. The input shaft drives a central (sun) gear, which then turns the surrounding (planet) gears. This arrangement lets each planet gear deliver torque in perfect synchronization with the others. Planetary gearheads share their torque load over multiple ‘planet’ gears, which leads to greater torque output capacity, and takes the pressure off of each individual gear.

Both types of gearhead are made from a variety of metals and plastics, including brass, steel, nickel-steel, and other alloys. Important design factors include the size of the gears and the number of teeth on each of those gears. This determines the gear ratios for output torque and the shaft speed.

With proper machining, it is possible to attain the same backlash from both spur and planetary gearheads. For standard gears, backlash ranges from 1° to 2°. Planetary and spur gearheads can provide up to 90% efficiency for a single stage unit. (All gearheads can include multiple stages, but that approach also adds to the length of the device.) Reduction ratios for both spur and planetary gearheads range from near unity up to several thousand to one.

Generally, spur gearheads are quieter than planetary gearheads. On all gearheads, noise increases at higher speeds, but note that noise is a function of tooth shape, the interaction of the teeth, and the material used. Steel-cut gears are the most durable, making them ideal for high-torque applications, while porous sintered gearwheels are better at holding lubricants. (Lubrication is a factor when service life is a consideration.)

Most often, the selection of which gearhead type to use relates to the torque capability of the gearhead, while the selection of the reduction ratio primarily relates to the input speed limit required for the application. Whether spur or planetary, speed depends mostly on what the device is designed for. Tooth shape design is an optimization and compromising process, which affects speed, torque, efficiency, and backlash, as well as noise level—and all combinations of these factors.

About The Author

Danielle Kirsh

Danielle Kirsh is an award-winning journalist and senior editor for Medical Design & Outsourcing, MassDevice, and Medical Tubing + Extrusion, and the founder of Women in Medtech and lead editor for Big 100. She received her bachelor's degree in broadcast journalism and mass communication from Norfolk State University and is pursuing her master's in global strategic communications at the University of Florida. You can connect with her on Twitter and LinkedIn, or email her at dkirsh@wtwhmedia.com.

Related Articles Read More >

An image of Faulhaber's 14GPT and 16GPT metal planetary gearheads.
Faulhaber introduces new metal planetary gearhead sizes
AMETEK Dynamic Fluid Solutions and Bison Gear & Engineering Corp. rebrand as Bison
#7314 Miki Pulley MST Products Photo
MST offers custom, quality components
UClip w Ering

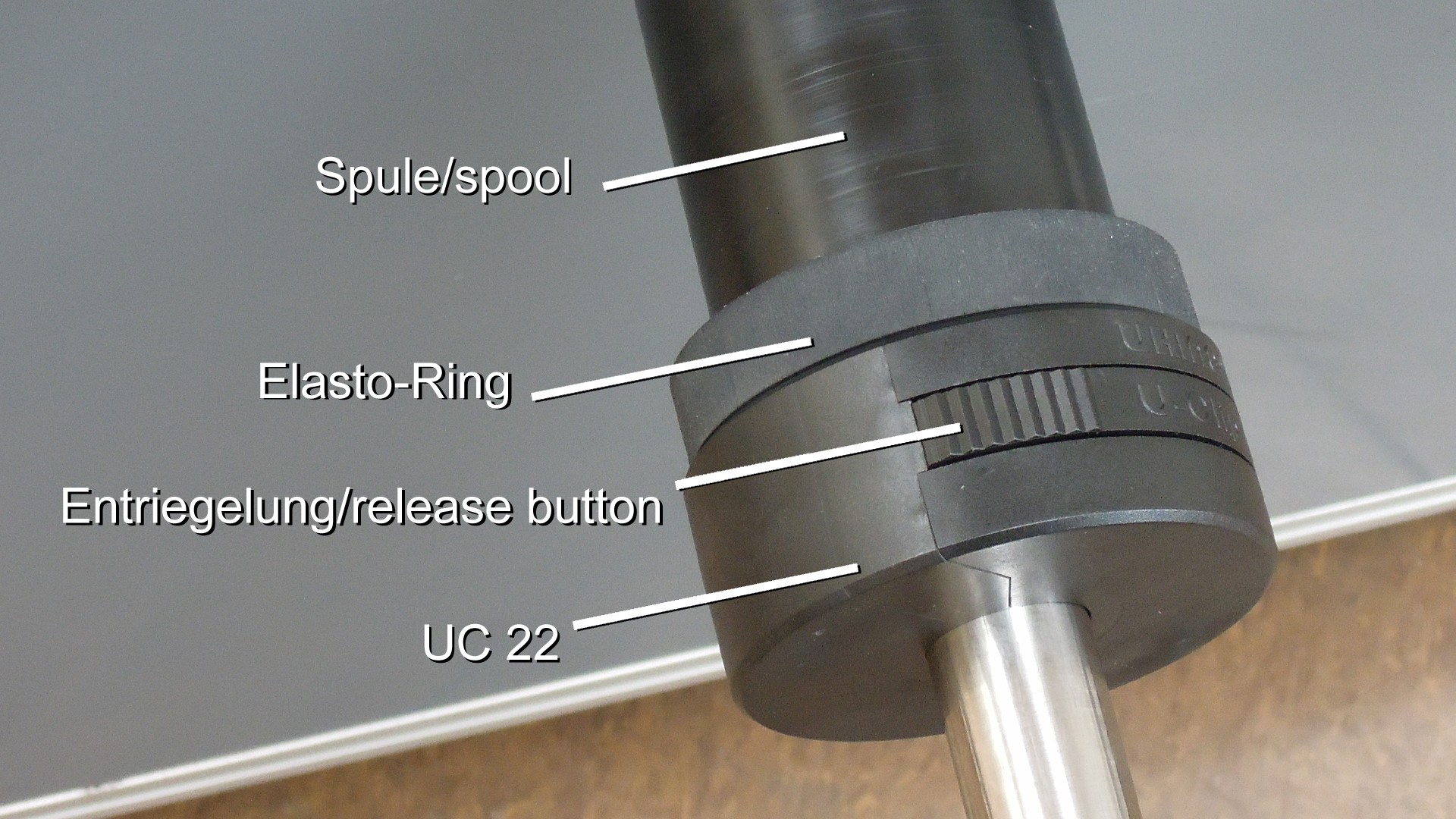

Simple rubber washer prevents shaft collars from getting stuck on shafts
