Magnetic Sensor Systems launches rotary solenoids series

NEWS RELEASE: Rotary Solenoids Matched to An Application Are Available in OEM Quantities!

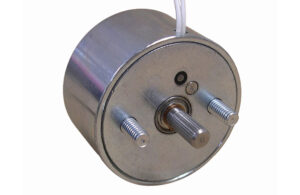

Van Nuys, CA –The R-09-150 CWN Series of Clockwise, Reverse Shaft Extension Rotary Solenoids from Magnetic Sensor Systems (MSS), available in OEM quantities, features 18 different winding configurations allowing the user to match torque and duty cycle requirements to an application. These compact 38.1 mm (1.50 in.) diameter solenoids are just 22.1 mm (0.87 in.) long and have two M4X0.7 threaded studs (8-32 studs optional) 7.4 mm (0.29 in.) long on a 22.2 mm (0.875 in.) bolt circle.  The reverse shaft has 40 degrees of clockwise rotation, extending 13.0 mm (0.51 in.).  Shaft end is serrated for better grip of the attached load.

The R-09-150 CCWM Series of Rotary Solenoids can be specified with a choice of AWG winding of 21 to 37 gauge.    Specifying a different AWG for the windings allows the user to control the performance of a solenoid with respect to duty cycle, current supplied, and torque by controlling the ampere turns.  As an example: Starting torque of a solenoid at 9 w, 100% duty cycle, is 3.0 oz-in. (0.021 Nm) and start torque of a solenoid at 90 w, 10% duty cycle is 21 oz-in. 0.15 Nm).  When voltage is removed, a built-in return spring returns the shaft to the home position.

The shaft is supported by two high precision radial ball bearings with no axial movement.

Low cost, the R-09-150 CWN Series of Rotary Solenoids feature long life, clean and quiet operation are ideal for: Office machines, security mechanisms (interlocks), medical devices, assembly, sorting, clamping, packaging, shutter actuation, vending, and games.  Please consult our Sales Team if another size, higher forces, direction of rotation, or mounting configuration is required.

About Magnetic Sensor Systems

Established in 1983, Magnetic Sensor Systems (MSS) designs and manufactures high quality solenoids, electromagnets, driving electronics and other types of electro-mechanical components for a variety of industries and applications.

Part of Magnetic Sensor Systems’ competitive advantage is its state-of the-art in-house manufacturing facility in North America.  Highly controlled processes, committed staff and extensive testing complement their product design strengths.   This enables Magnetic Sensor Systems to supply the most demanding clients from specialized small orders to high volume just-in-time deliveries.  Magnetic Sensor Systems is an ISO 90001:2015 certified company.

Through wise and aggressive use of their resources and technology, MSS has become recognized as one of the world’s leading solenoid manufactures with a global customer base.

An extensive line of standard products are ready to be shipped immediately from stock, however, when required, their highly trained design engineers, are always available to work with a customer’s design staff to augment or develop a custom product to fit the specific needs of the customer.

For additional information contact the Sales Team at Magnetic Sensor Systems, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-9444, Tel: +1 (818) 785-6244, E-Mail info@magneticensorsystems.com or visit the website at http://www.magneticsensor systems.com
