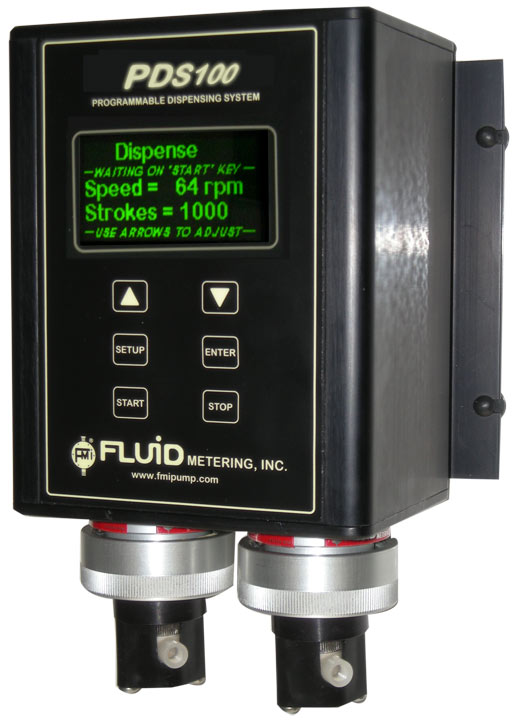

The PDS100, a precision system from Fluid Metering Inc., is capable of dispensing or pumping fluids ranging from 3 mL per dispense or 18 mL/min continuous (Single RH00LF) up to 1,536 mL/min (Dual Q3) into pressures ranging from 10 to 100 psi (RH).
The PDS100 is capable of dispensing or pumping fluids ranging from 3 mL per dispense or 18 mL/min continuous (Single RH00LF) up to 1,536 mL/min (Dual Q3) into pressures ranging from 10 to 100 psi (RH).
A few system features include FMI’s Patented CeramPump No-Valve Fluid Control Technology on all models. Intuitive menu-driven programming uses front panel membrane switches with 2.75 x 1.5-in. LCD display. Pump heads are integrally mounted to the control unit, which includes precision stepper motors, drivers, and programmable electronics housed in a rugged, anodized, aluminum enclosure. Additional features:
- Available in single and dual pump head configurations in all FMI pump head sizes
- Universal power input accepts 100 to 240 Vac, 50 or 60 Hz
- Ideal for process & production single and dual channel dispensing & filling
- Dual pump head configurations can be programmed for independent pump control, great for proportional flow or dilutions
- WEEE Compliance RoHS
PDS100 Specs
| Dimensions | 7 1/4 x 5 1/8 x 6 ¼-in. 182 x 128 x 159 mm |
| Shipping wt | 7.5 lb, 3.41 kg |
| Electrical
|
RS485, 4 to 20 mA, 0 to 10V, 0 to 5V interface for connection to process sensors, PLC and PC controllers |
