Simple rubber washer prevents shaft collars from getting stuck on shafts

July 16, 2015 By MDO Editor

Amacoil has introduced the Elasto-Ring washer for use with U-Clip quick release shaft collars. Elasto-Ring installs by hand with no tools required and assures easy removal of the U-Clip collar.

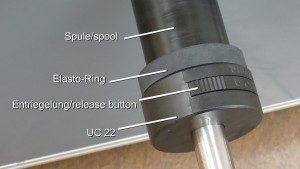

UClip w Ering

The Elasto-Ring washer snaps onto the end of the U-Clip collar. When the U-Clip is in place, the Elasto-Ring is against the spool flange, between the flange and the U-Clip. If back pressure starts to build, it is largely absorbed by the Elasto-Ring which flexes against the U-Clip collar.

Amacoil is the exclusive U.S. distributor for Elasto-Ring washers, Uhing U-Clip and EasyLock shaft collars and for Uhing rolling ring traverse drives.

When a U-Clip is placed on a shaft to hold a reel or core in place, the reel or other object begin secured, create back pressure against the U-Clip. For example, the flanges on a reel may bulge as the spool fills. As the flanges expand and push against the U-Clip collar, the increasing pressure may interfere with the function of the quick release mechanism and make it difficult to remove the U-Clip.

The Elasto-Ring washer snaps onto the end of the U-Clip collar. When the U-Clip is in place, the Elasto-Ring is against the spool flange, between the flange and the U-Clip. If back pressure starts to build, it is largely absorbed by the Elasto-Ring which flexes against the U-Clip collar. This effectively cushions the U-Clip and prevents a significant build up of back pressure. The quick-release feature assures a fast, easy and one-handed removal of the U-Clip and Elasto-Ring.

Elasto-Ring washers are available in the same ten sizes as U-Clip collars for use on shafts with diameters ranging from 8 to 35 mm. Made from durable, heat resistant rubber, Elasto-Ring washers are long lasting and will not deteriorate from heat generated by friction coming from the rotating spool flange.

July 2015 Elasto-ring

Elasto-Ring washers are available in the same ten sizes as U-Clip collars for use on shafts with diameters ranging from 8 to 35 mm. Made from durable, heat resistant rubber, Elasto-Ring washers are long lasting and will not deteriorate from heat generated by friction coming from the rotating spool flange.

Ideal for most basic spooling processes, U-Clip shaft collars with Elasto-Ring washers may not be suitable for some high-speed packaging and converting operations. For these applications, where it is important that there be no play between the shaft and reel, Uhing EasyLock shaft collars feature adjustable clamping force which eliminates play and assures that the reel and shaft start and stop together. For maximum holding force, both U-Clip and EasyLock collars must be used on case hardened and precision ground smooth shafts with no threads.

Amacoil
www.amacoil.com
