The Asahi Intecc Drive Cable is available in diameters from 0.020” (0.5mm) to 5.5mm (about 0.216”). Efforts are underway to further expand size range to 0.275” or approximately 7mm diameter for applications in orthopaedics, endovascular, automotive and aerospace interiors and controls, and machine, pump, conveyor design. Source: Asahi Intecc

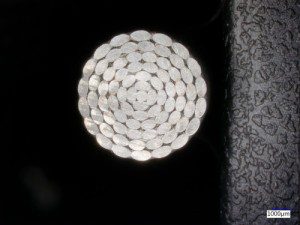

Asahi Intecc now offers high speed rotation stainless steel miniature drive cables for medical device and industrial applications requiring diameters less than 1/3”. The Asahi Drive Cable is a multi-layer, multi-filar, stranded flexible shaft with high bi-directional torque transmission properties with minimal backlash or lag. The multi-stranded shaft may be edm cut to short lengths for a smooth finish (1 in.) to 2m lengths depending on the application, and in-house assembly and coating services are offered.
The layers and size of wires, along with the way in which the wires are processed, may be customized to the degree of flexibility, torque force, rotation speed required by the application. A cannulated 3 layer version is also offered for applications in which material in which aspirated material is extracted through the lumen.
