GlobTek’s GT-43086 series of enclosed power supplies are housed in Impact resistant non-vented Polycarbonate Thermal Conduction-Cooled Cases and feature regulated outputs with low ripple, built-in overcurrent, short circuit, overvoltage and thermal protection, as well as low leakage, low ripple and high efficiency.

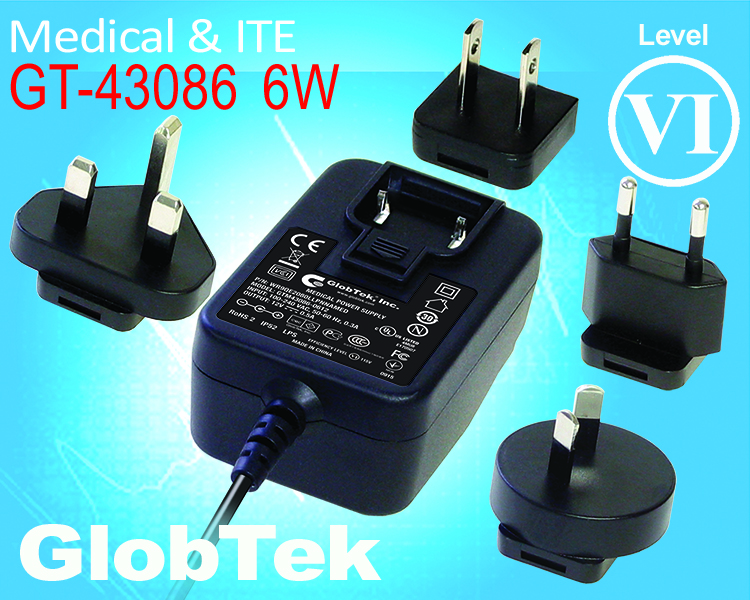

T-43086-WWVV-X.X-Q Model is an addition to GlobTek’s Level VI compliant GT-43086 family and represents GlobTek’s 6 Watt wall plug-in series of AC/DC adapters (power supplies and chargers) with International Interchangeable blades.
GlobTek’s changeable input blade system with individual field replaceable input plugs, including: North America and Japan NEMA 1-15P, Australian, UK BS 1363, European CEE 7 and 16 configuration, Korean KS C8305, Argentina IRAM 2073, China GB, India IS 1923 6A/SANS 164-3/BS546, IEC320/C18 Inlet, Brazilian NBR6147, S. African SANS 164-1 and British Standard BS 546-15A configurations and Global Regulatory & Safety Approvals and
Certifications
These Level VI converters are introduced well ahead of February 10, 2016 compliance requirement for External Power Supplies (EPS) to meet Level VI Standards which include more stringent efficiency demands than current Level V. Along with tightened regulations for existing adapters, the new standard expands the range of products that fall under Level VI. Compared to Level V requirements, regulated products will now include multiple output as well, as greater than 250 watts external power supplies.
In addition to mandated government regulations, GlobTek is now starting to develop “greener” power supplies by increasing efficiencies and pushing the implementation of control technologies that in some cases eliminate no-load power consumption altogether. GT-43086 family of Level VI compliant adapters are designed to keep OEMs one step ahead of the coming legislation by implementation of latest energy saving technologies into our external power supplies in order to address market demands and comply with current and future regulations.
Level VI Exemptions
The new Level VI mandate also defines exemptions for EPS products. The direct operation EPS standards do not apply if:
- It is a device that requires Federal Food and Drug Administration listing and approval as a medical device in accordance with section 360c of title 21;
- A direct operation, AC-DC external power supply with nameplate output voltage less than 3 volts and a nameplate output current greater than or equal to 1,000 milliamps that charges the battery of a product that is fully or primarily motor operated.
Description and features
GlobTek’s GT-43086 series of enclosed power supplies are housed in Impact resistant non-vented Polycarbonate Thermal Conduction-Cooled Cases and feature regulated outputs with low ripple, built-in overcurrent, short circuit, overvoltage and thermal protection, as well as low leakage, low ripple and high efficiency.
Input voltage: Specified 90-264 VAC, Nameplate rated 100-240 VAC
Input frequency: Specified 47-63 Hz, Nameplate rated 50-60 Hz
Output power (Rated): 6 Watts maximum
Output voltage: 5 to 6V O with 0.1 V increments
Output regulation: +/- 5% measured at the output connector
Line voltage regulation: +/- 1% typical measured at the output connector
Output ripple (Vp-p): +/-1% or 150 mV whichever is greater at nominal output voltage. Measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector.
Turn-On/Turn-Off overshoot: 5% maximum, 500 us maximum recovery time for 25% step load.
Turn-On delay: 1 sec. Typical
Hold-up time: 8mSec maximum at nominal input and full load.
Inrush current: 30A typical at 115 VAC input ; 60 A typical at 230 VAC input
Switching frequency: 65 KHz typical
Protection
Over-voltage: Protected with Zener clamp across the output
Short circuit: Electronically protected, unit will recover upon removal of fault
Input protection: Input line fusing
Temperature
Operating temperature: 0° to 40°C ambient temperature
Humidity: 0% to 90% relative humidity
Storage temperature: -10° to 80°C
Enclosure:
Housing: High impact plastic, 94 VO polycarbonate, non-vented
Size: 40.5 x 62.0 x 31.5 +/-1.0 mm
Certifications, approvals and safety compliance
MTBF: 200,000 hours at 25° C ambient temperature
RoHS 2: Complies with EU 2011/65/EU China SJ/T 11364-2014
Dielectric Withstand Voltage: 4242 VDC from primary to secondary
CB Certificate IEC 60950-1:2005 2nd Edition + A1:2009 +A2:2013 Report to EN 60950-1:2006 +A11:2009 +A1:2010 + A12:2011 +A2:2013
CCC to GB4943.1-2011, Tropical <2000
CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N
Applications
This family of Industry’s high density wall plug-in AC-DC charging converters is suitable for most applications requiring DC power which include industrial, marine, consumer or optional medical devices, portable medical treatment and monitoring equipment and instruments, hospital equipment and fixtures. In addition lighting and support equipment, low power appliances or consumer products, VOIP phones and telecom equipment and are a perfect power source for rapid Li-Ion and other emerging chemistries battery charging.
