Moticont releases 0.875-in. diameter linear voice coil servo motor

NEWS RELEASE: Linear Voice Coil Servo Motor Just 0.875 in. in Diameter Has High Force-to-Size High Acceleration, and a 0.25 in. Stroke!

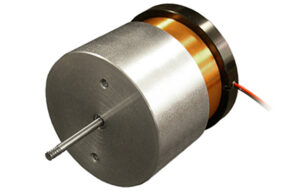

Van Nuys, CA – Moticont has released the GVCM-022-013-01 Linear Voice Coil Servo Motor. This compact .875 in. (22.2 mm) diameter high speed, high force-to-size linear motor features high accuracy and high repeatability when operated in a closed loop as a DC servo motor.  This brushless servo motor is clean, quiet and has long life, low mass and high acceleration/deceleration for high throughput.  This linear voice coil motor, also known as a moving coil motor or actuator is ideal for: Haptic feedback, medical devices, wafer handling, optical focusing, dynamic vibration absorption, work holding and clamping, assembly, testing, positioning, scanners, laser beam steering, laser speckle correction and filtering.

The 0.094 in. (2.4 mm) diameter shaft has a 2-56 UNC-2A thread and exerts 14.5 oz. (4.0 N) of continuous force and 45.7 oz (12.7 N) peak force with a 0.25 in. (6.4 mm) stroke.  The housing length is 0.500 in. (12.7 mm) long, the shaft extension is 0.54 in. (13.5 mm) for a total length (including shaft) of 1.22 in. (31 mm).  For easy integration into new and existing applications the housing and coil ends have two 4-40 UNC-2B threaded holes on a 0.375 (9.5 mm) bolt circle.

Metric series threads are available in production quantities. A complete line of quadrature linear encoders and plug-and-play servo systems including Controller, Joystick and keypad are also available.

Is there a need for a smaller or larger diameter motor, one with longer travel, or more force?  Select from Moticont’s extensive series of GVCM Servo Motors based on diameter of the motor, length of stroke, and/or force.  To find the right motor for your application go to http://moticont.com

About  Moticont – Moticont is a manufacturer of motion control products. Their product line includes voice coil motors, three phase brushless motors and positioning stages and slides.

Moticont is committed to exceeding their customers’ quality expectations and industry standards throughout the design, manufacturing, service and technical support phases. Our modern manufacturing facility, highly controlled processes, committed staff, and extensive testing complement our product design strengths. This enables us to supply our clients with specialized small orders to high volume just-in-time deliveries.

We offer an extensive line of standard products ready to be shipped immediately from stock, and when standard products are not quite right for an application, highly trained design engineers are always available to develop custom motion control products to fit the specific needs or our customers.

For additional information contact our sales team at Moticont, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-1804, Tel: +1 (818) 785-1800, E-Mail moticont@moticont.com or visit the website at http://www.moticont.com
