Moticont launches new miniature direct drive linear motor

NEWS RELEASE: Miniature Direct Drive Linear Motor with Integrated Encoder and Temperature Sensor is Just 16 mm in Diameter!

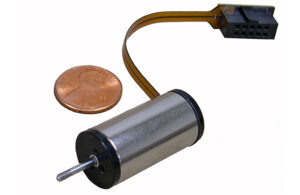

Van Nuys, CA – Moticont is introducing their new miniature 16 mm diameter SDLM-016-032-01-01 Direct Drive Linear Motor with integrated position and temperature sensors. This smallest of the fully enclosed SDLM series of linear motors features zero backlash, zero cogging, high acceleration, high speed, high resolution, and long life.  Also known as an electric cylinder, this compact direct drive linear motor is just 16.0 mm (0.625 in.) in diameter and 31.8 mm (1.25 in.) long.  Protected inside the motor housing, the linear optical quadrature encoder is directly connected to the shaft for the greatest possible accuracy.  Highest throughputs are achieved by the SDLM-016-032-01-01 linear motor when operating at peak efficiency monitoring the temperature from the internal temperature sensor.

This new SDLM-016-032-01-01 direct drive linear motor has a stroke length of 6.35 mm (0.25 in.) and a continuous force rating of 1.14 N (4.11 oz.) and peak force of 3.6 N (13 oz.) This non-commutated direct drive servo motor features: Quiet long life, plain linear bearings, an integrated internal 1.25-micron resolution quadrature optical encoder, and a non-rotating shaft.  Connections are easily made via a flex cable terminated in a 2-by-5 polarized connector.

These miniature linear servo motors are ideal for: Medical devices (e.g. infusion pumps, prosthetic devices, and surgical robots), automotive and consumer products, aerospace (e.g. aircraft, drones, satellites, and rockets), robotics and industrial automation, and laboratory applications (e.g. microscope stages, pipetting, and sampling).

Direct coupling of the load or stage to the low inertia non-rotating shaft eliminates backlash and allows for high acceleration/deceleration.  Both ends of the actuator and shaft ends have threaded mounting holes for easy integration into new and existing applications.
The SDLM-016-032-01-01 Direct Drive Linear Actuator is also available with a matching servo controller.

About Moticont

Moticont is a manufacturer of motion control products. Our product line includes voice coil motors, three phase brushless motors and positioning stages and slides.

Moticont is committed to exceeding Our customers’ quality expectations and industry standards throughout the design, manufacturing, service and technical support phases. Our modern manufacturing facility, highly controlled processes, committed staff, and extensive testing complement our product design strengths. This enables us to supply our clients with specialized small orders to high volume just-in-time deliveries.

We offer an extensive line of standard products ready to be shipped immediately from stock, and when standard products are not quite right for an application, highly trained design engineers are always available to develop custom motion control products to fit the specific needs or our customers.

For additional information contact Sales Team at Moticont, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-1804, Tel: +1 (818) 785-1800, E-Mail moticont@moticont.com or visit the website at http://www.moticont.com
